From .cut file to radiation pattern

  1. 01Sign inOne-click email link. Free, no password, no card.
  2. 02UploadThe .cut file from TICRA or compatible tools.
  3. 03DownloadPlots, gain table and color-graded Excel, in seconds.
⌁
Sign in to upload a file — it's free, no password needed.
Sign in to get started

What you get from one .cut file

Interactive viewers in the browser, ready the moment processing ends.

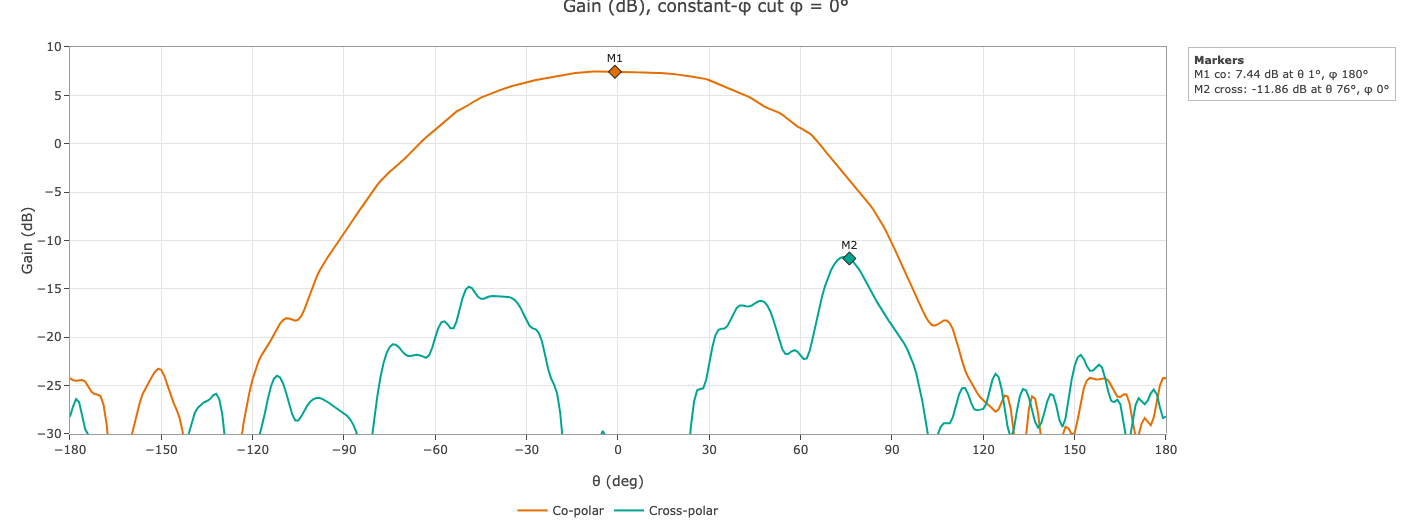

Cartesian cuts with markers Cartesian plot of co-polar and cross-polar gain versus theta with two markers and their values

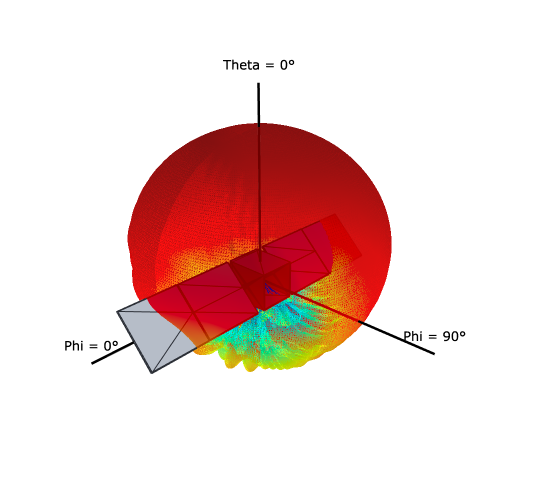

Interactive 3D pattern with CAD Interactive 3D radiation pattern coloured by gain, semi-transparent around the imported CAD model of the satellite

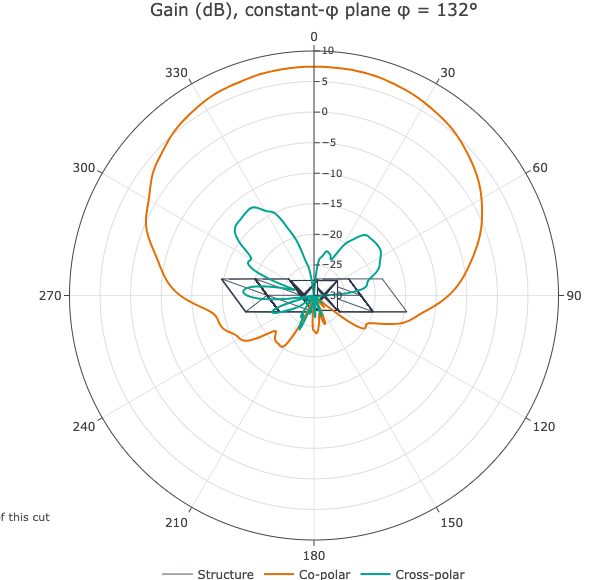

Polar cuts with CAD overlay Polar plot of co-polar and cross-polar gain with the outline of the imported CAD structure at the centre

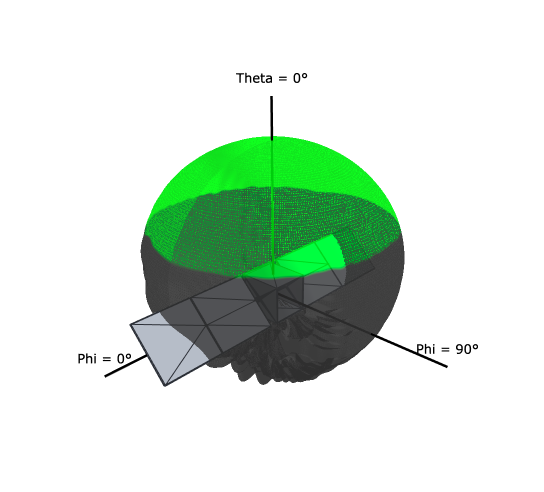

3D coverage above a threshold 3D radiation pattern with the region above a chosen gain threshold highlighted in green, around the imported CAD model

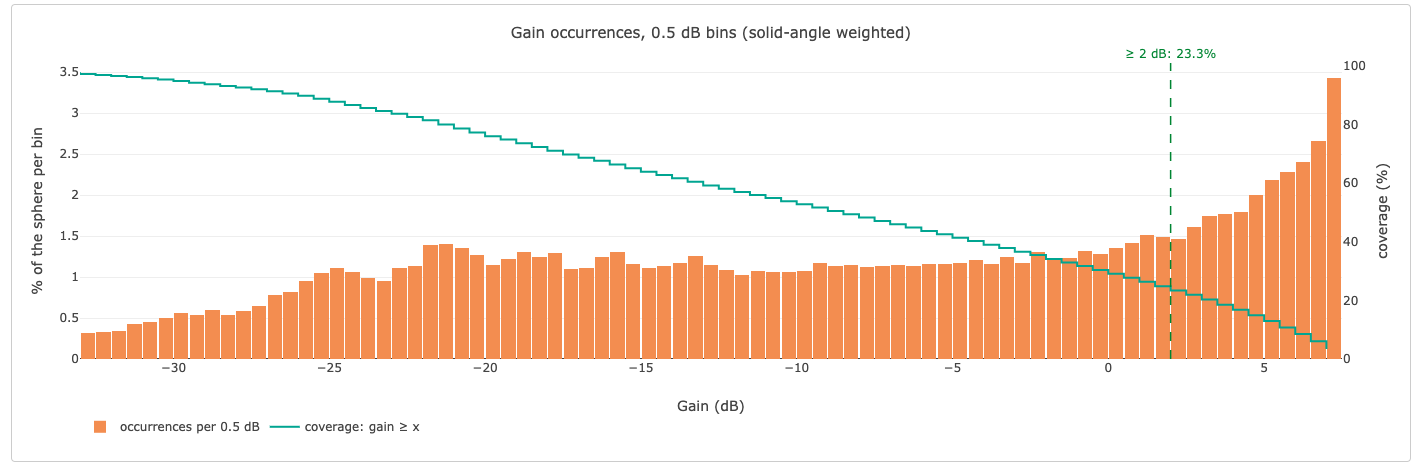

Gain histogram and coverage vs requirement Histogram of gain occurrences in 0.5 dB bins, solid-angle weighted, with the coverage curve and a 2 dB requirement marked

Feedback or a support question?

Tell us what's wrong, missing, or confusing. Feedback and support messages can be sent by signed-in users: signing in is free and takes one email link.
